Description

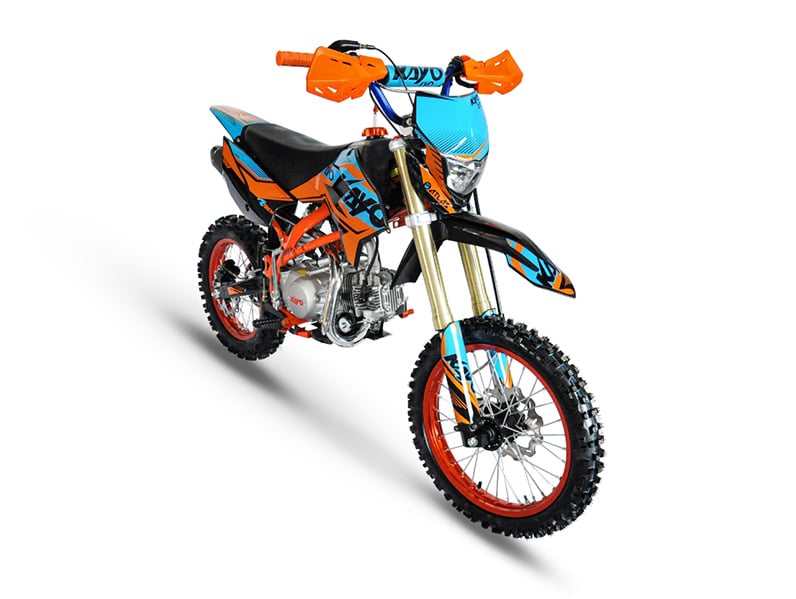

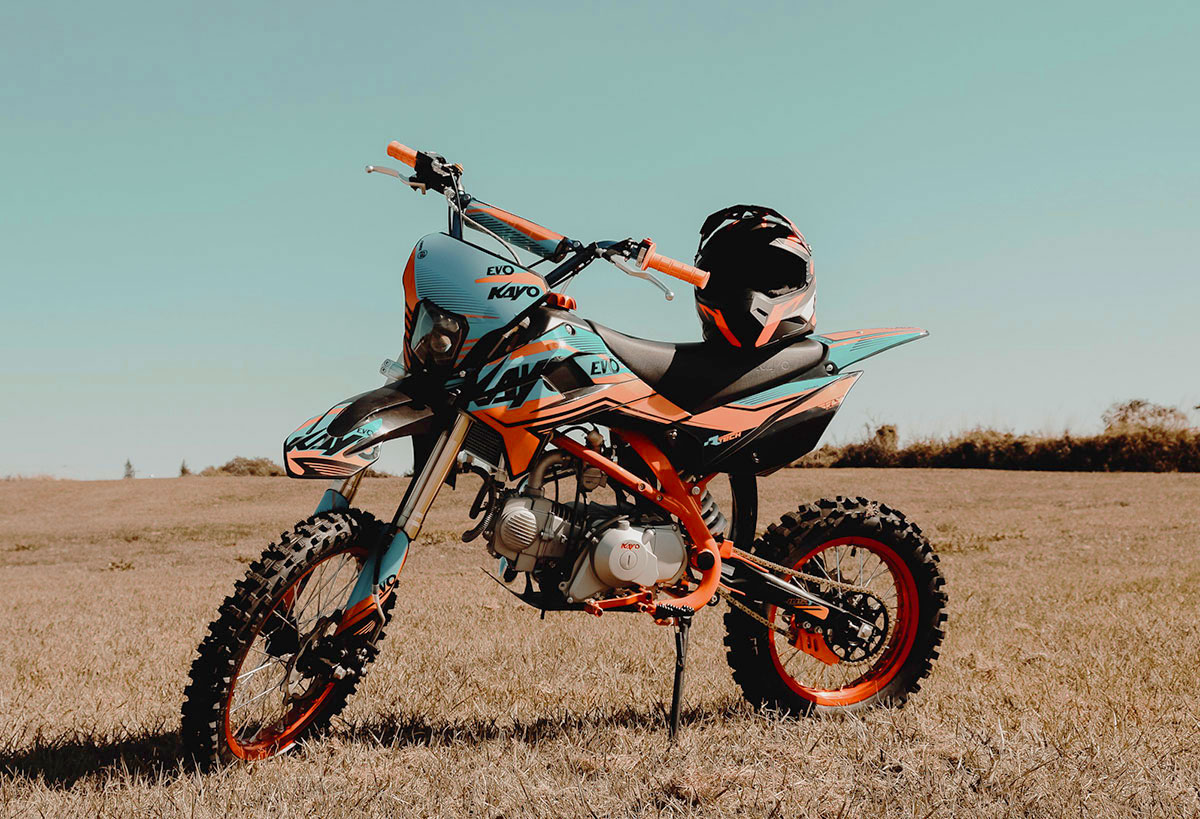

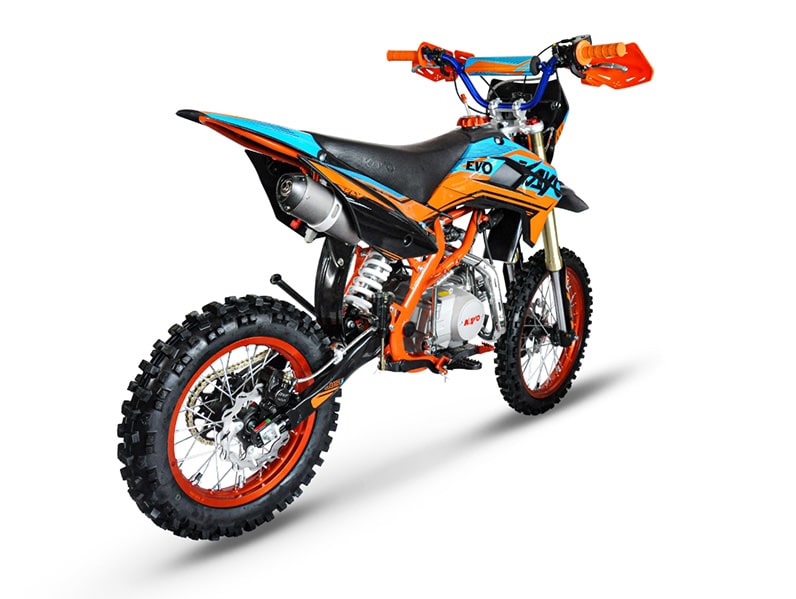

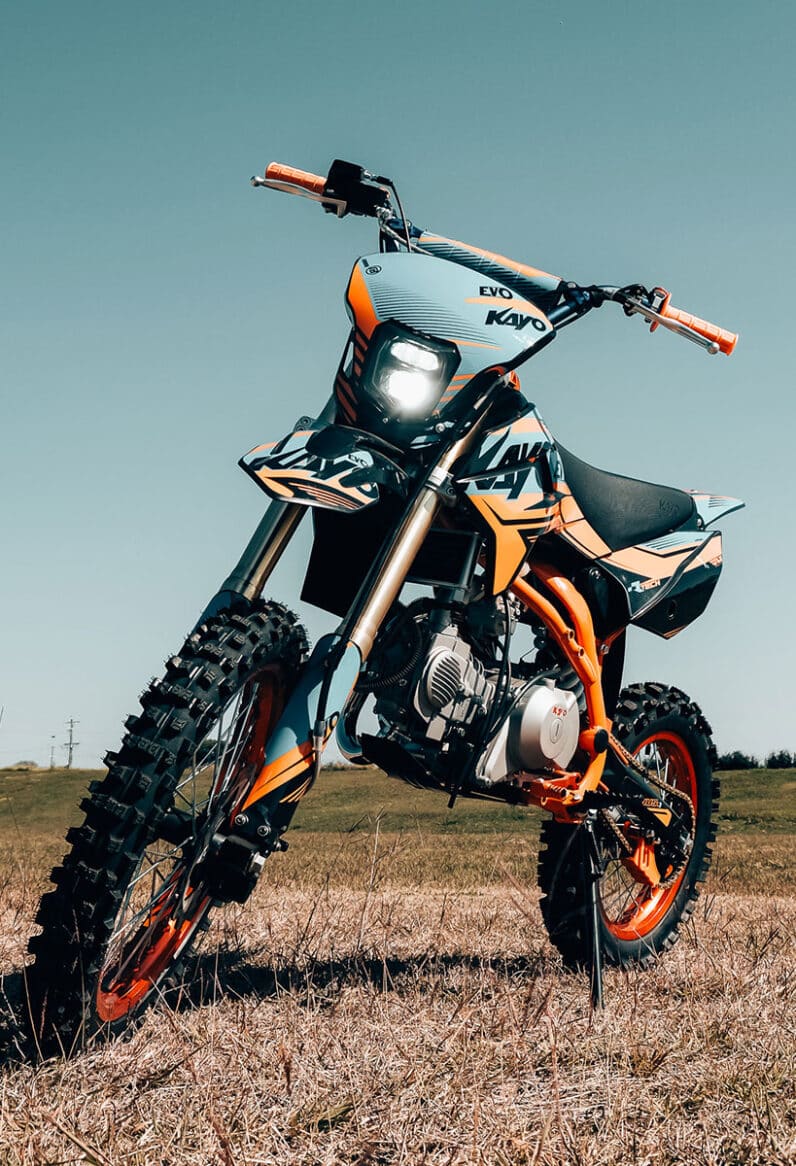

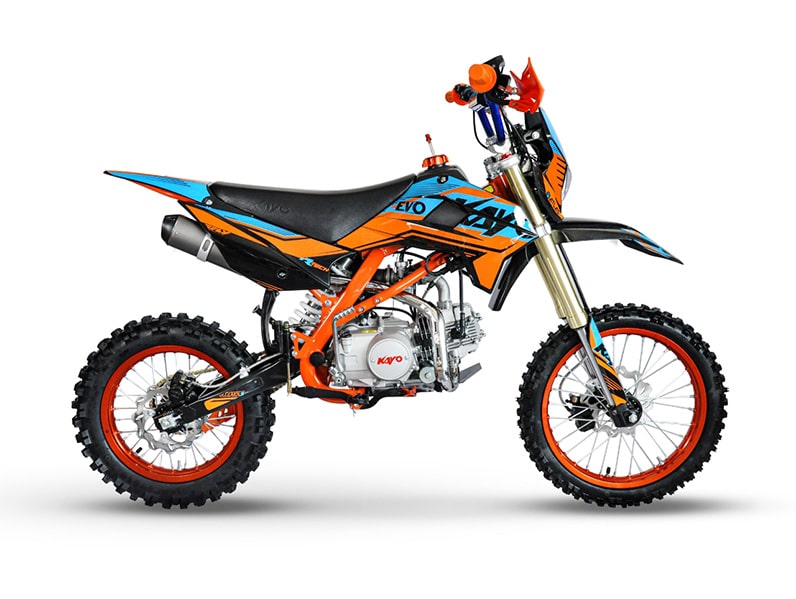

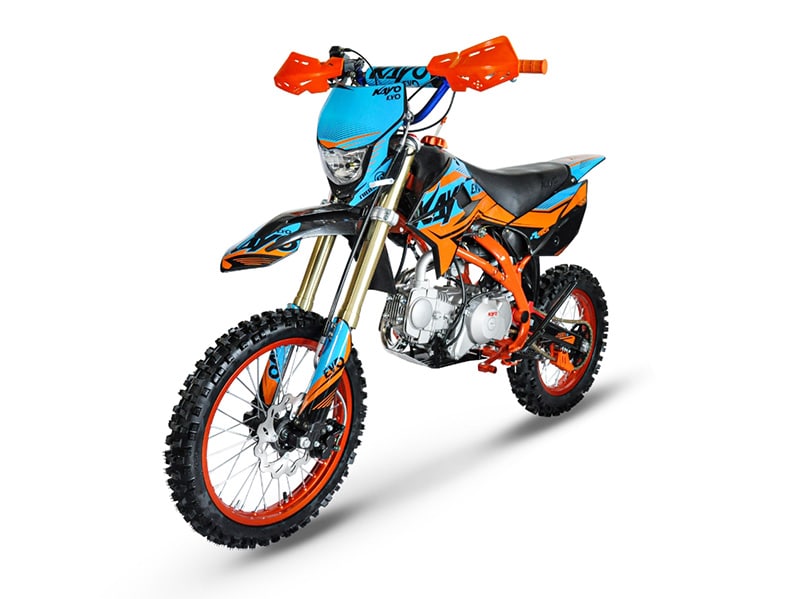

The KAYO EVO 140 is built for young intermediate riders ready to take it up a notch. With a punchy 140cc engine, 4-speed gearbox, and lightweight build, it’s perfect for those ready to move beyond the basics.

• 140cc Single Cylinder Engine
• Kick/Electric Start Engine
• Front/Rear Disc Brakes
• Three-beam steel frame

Specifications

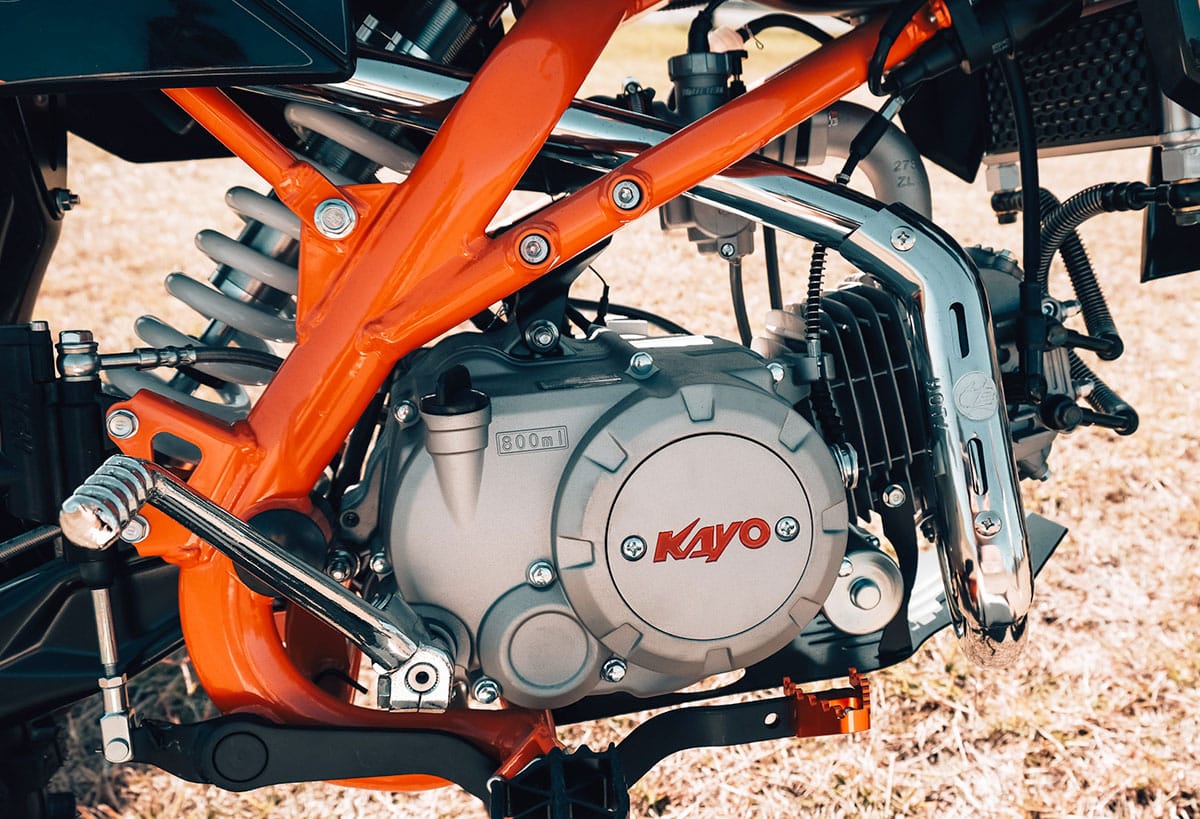

Engine
Engine Type:		Single-cylinder, 4-valve, Oil cooling, 4 gears
Displacement:		140cc
Compression Ratio:		8.8 : 1
Max. Power:		6.8/7500 kw/rpm
Max. Torque:		9.7/5500 N.m/r/min
Fuel System:		Standard Carburetor (PE19)
Starting:		Kick/Electric
Transmission:		Chain (15T-41T 428H#)
Ignition:		CDI
Chassis
Frame:		Three-beam steel frame
Front Shock:		770mm Non-adjustable
Rear Shock:		360mm Non-adjustable

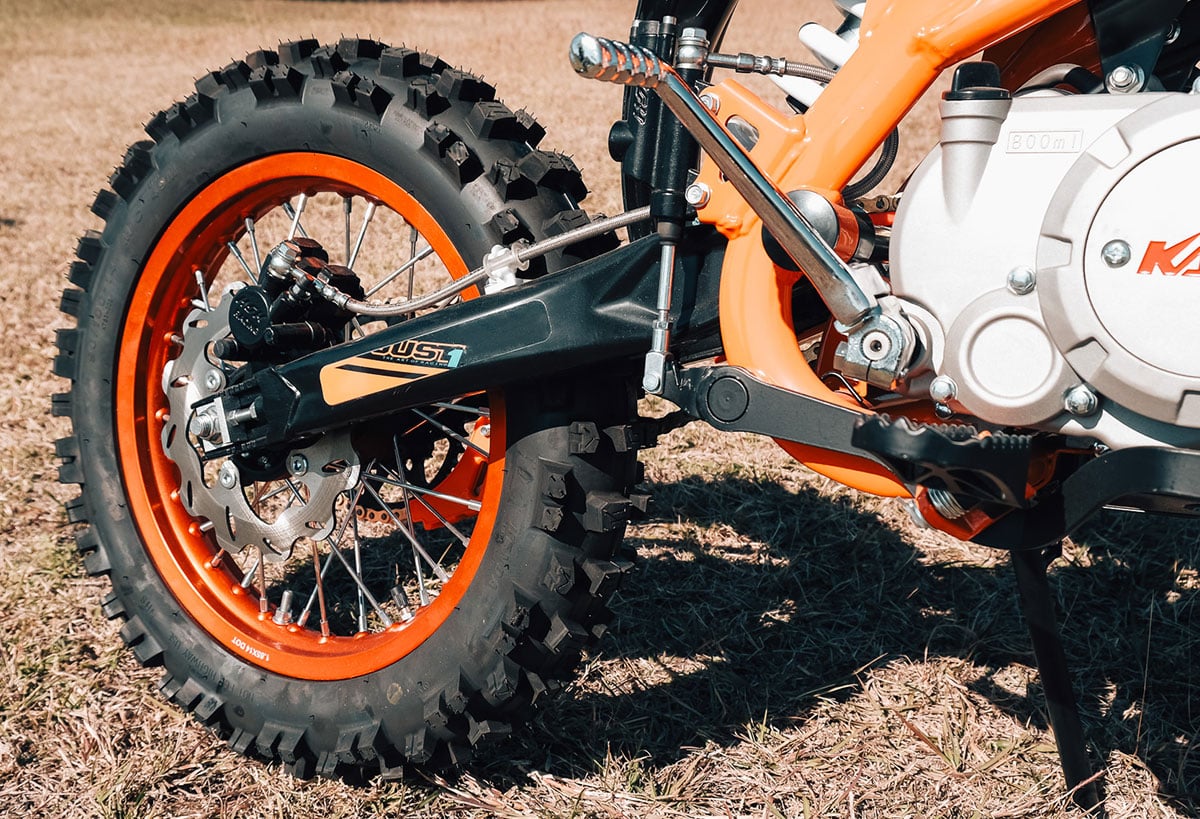

Front Braking:		Disc Brake

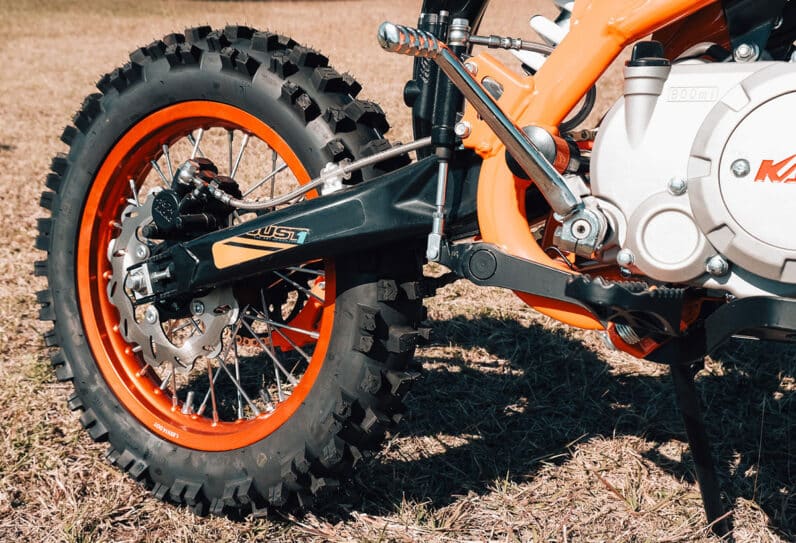

Rear Braking:		Disc Brake
Front Wheel Rim:		Aluminium 1.6*17
Rear Wheel Rim:		Aluminium 1.85*14
Front Tyre:		17″ 70/100-17
Rear Tyre:		14″ 90/100-14
Dimensions and Capacities
Vehicle Size:		18107501210mm
Wheel base:		1240mm
Seat Height:		870mm
Ground Clearance:		300mm
Dry Weight:		82kg
Fuel Capacity:		5.5 L
Packing Size:		1420380650 mm
Qty in 20’GP/40”HQ:		96 PCS/195PCS

If you have any questions, please give us a call on (07) 3800 1283 or email us at [email protected].

Important Notice

This vehicle is for off-road purposes only and cannot be registered.
The laws around the use of this vehicle may vary from state to state.
Always check your local council and road traffic laws prior to using this vehicle to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

EVO 140

Average rating:

0 reviews

Additional information

Weight	49.5 kg
Dimensions	112 × 38 × 64 cm
